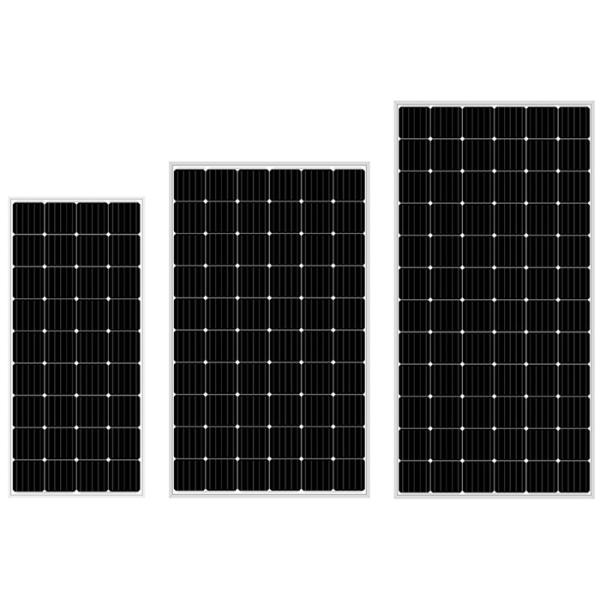

90W Tempered Glass Monocrystalline Solar Panel

Name: 90W Tempered Glass Monocrystalline Solar Panel
Brand: NACYC ENERGY
Price: 1 USD

China 90W Tempered Glass Monocrystalline Solar Panel wholesale

Brand Name : NACYC ENERGY

Model Number : DS-90M6-36

Certification : CE,SGS,TUV

Place of Origin : Fujian, China

MOQ : 3 Kilowatts

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 300 kilowatts per month

Delivery Time : Shipped in 15 days after payment

Packaging Details : 250KW/40ft, 100KW/20ft

Solar Size : 780mm*670mm*30mm

Module efficiency : 20.6%

Weight : 6.15KGS

Framed : Anodized aluminium alloy

Front Glass : High transmission tempered glass

Junction box : IP65, 2 diodes

Connector : MC4 / MC4 Compatible

Cable : 2.5mm² (IEC) Length: 900mm

Contact Now

10 Years Monocrystalline Panel Power Solar PV Panel 75-90w High Transmission Tempered Glass

Product usage

1. Application: Home&Residental; Commericial; Industrial; Large scale development

2. Solar system type: on grid solar system; off grid solar system; Hybrid solar system

Product parameters

Solar size	780mm670mm30mm
Weight	6.15KGS
Framed	Anodized aluminium alloy
Module efficiency	20.6%
Front Glass	High transmission tempered glass
standards	CE; SGS; TUV
Junction box	IP65, 2 diodes
Connector	MC4 or MC4 Compatible
Cable	2.5mm² (IEC) Length: 900mm
Warranty	Ten years warranty
Duratiom	More than 20 years

Product advantage

1. 10Ys Products Warranty; 25Ys Warranty on power output; PID Resistant; Positive tolerance 0/+5w guaranteed;

2. MBB The optimized umber and width of main gate lines,Maximize the light receiving area of components and Reduce component power consumption;

3. Designed for high voltage systems of up to 1500 VDC, increasing the string length of solar systems and saving on BoS costs;
4. Microcrack resistant Double glass structure enhance reliability, triple EL tested of high quality control;

5. Entire module certified to with stand extreme wind (2400 Pa) and snow loads (5400 Pa);

6. All the modules are sorted and packaged by amperage, reducing mismatch losses and maximizing system output.

90W Tempered Glass Monocrystalline Solar Panel
